Head Restraint Performances (HRP) Test Rig

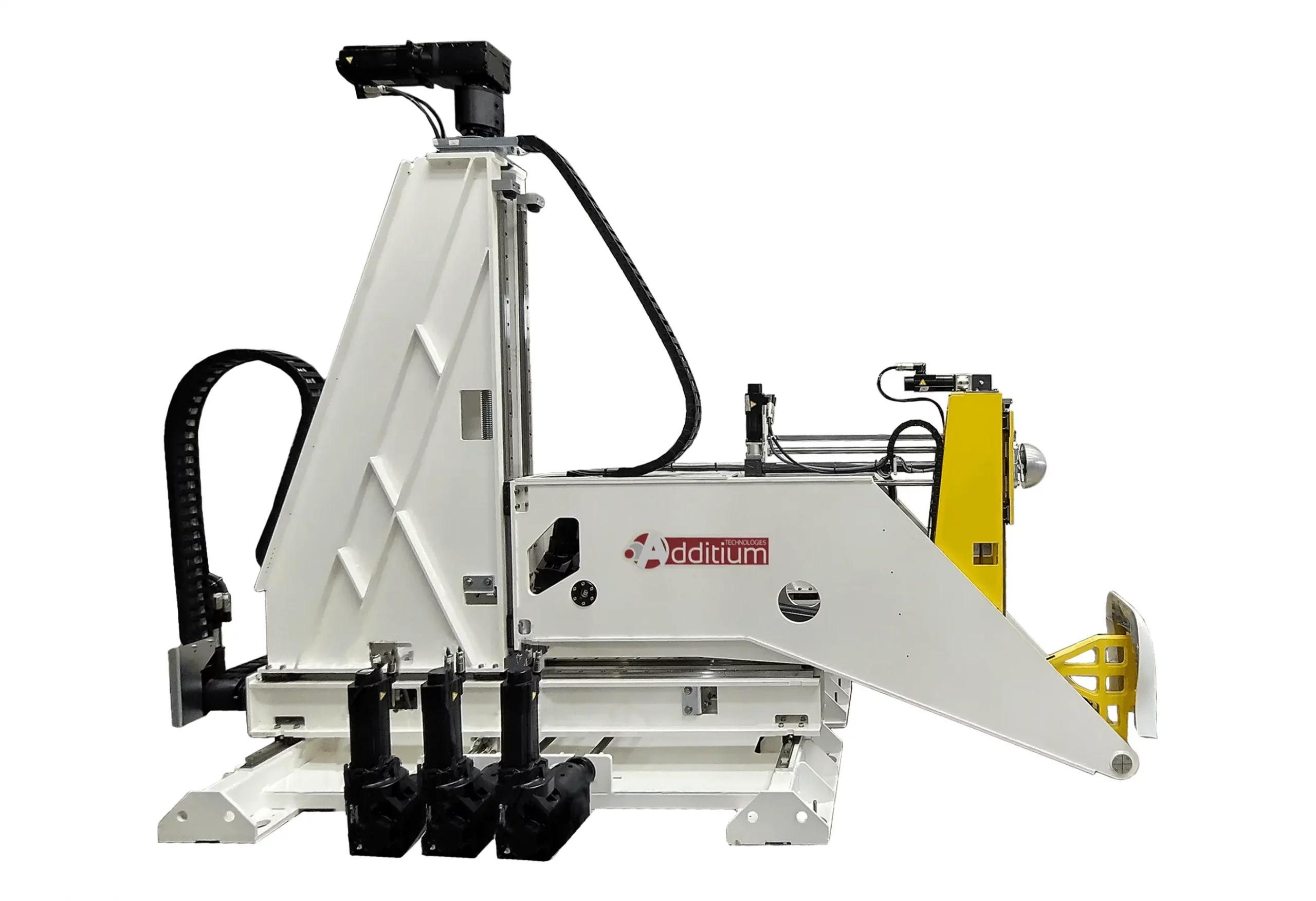

The Head Restraint Performance Test Rig is an advanced, fully electrical testing system engineered to evaluate the structural strength, stiffness, and safety performance of automotive seats, seatbacks, anchorages, and head restraints.

Designed to meet global automotive safety standards, this system plays a critical role in validating occupant protection during rear-impact scenarios. Its robust architecture enables simultaneous and independent testing of up to three seats, making it a highly efficient and cost-effective solution for OEMs, test labs, and R&D centers.

Why Head Restraint Testing Matters

Head restraint systems are essential for minimizing whiplash injuries during collisions. The HRP Test Rig ensures that seating systems comply with international regulations while maintaining structural integrity under dynamic loading conditions.

The system has been designed according to the following regulations:

  • FMVSS 202A, FMVSS 202
  • ECE R17, R25
  • GTR 7
  • EEC Dir 78/932
  • GB 11550 – 1995, GB 15083 – 2006
  • IS 15546 – 2005
  • AIS 016, AIS 023
Key Capabilities
  • Comprehensive Seat Evaluation
    Accurately measures the performance of seat structures, backrests, anchorages, and headrests under controlled loading conditions.
  • Multi-Seat Testing Efficiency

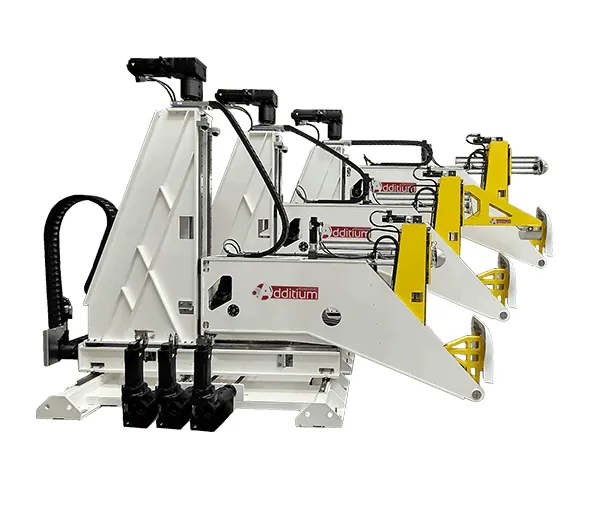

    Capable of testing up to three seats simultaneously and independently, increasing throughput and reducing testing time.
  • Global Standards Compliance
    Fully designed to meet major international regulations including:
    • FMVSS 202 / 202a
    • ECE R17, R25
    • GTR 7
    • AIS, IS, GB and EEC directives
Advanced System Features
  • Servo-Electric Actuation
    Fully electrical system ensuring clean, quiet, and maintenance-efficient operation with precise load control.
  • High-Precision Load & Position Control
    Real-time closed-loop control for both force and displacement, delivering highly accurate and repeatable test results.
  • Programmable Load Profiles
    Enables precise simulation of real-world loading conditions with customizable test sequences.
  • Integrated Height Retention Testing
    Supports evaluation of head restraint position stability under load conditions.

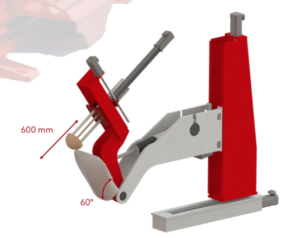

  • Motorized Positioning System
    Allows easy alignment and positioning relative to seats or full vehicle sections.
  • Laser Alignment System (H-Point Tool)
    Ensures accurate setup and repeatability with quick and reliable positioning.
  • High-Resolution Measurement System
    16-bit data acquisition ensures high accuracy across all force and torque ranges.
  • Compact Load Station Design
    Narrow central load station (<240 mm) enables testing across a wide variety of seat designs.
