Medium Force Shakers

LDS® air-cooled medium-force electrodynamic shakers are used for vibration and mechanical shock testing of large payloads up to 700 kg (1540 lb), such as complete battery assemblies for hybrid vehicles, automobile parts, satellite components, electronic assemblies and military hardware.

These versatile range of medium-force shakers are widely used within the automotive, aerospace, transport and packaging, and defence sectors for a variety of R&D and testing scenarios that include pre-production qualification, durability and reliability tests, and product and package testing.

Applications:
  • Qualification testing of automotive parts and systems, including Hot Shake Test (HST) of brake and exhaust systems, Squeak and Rattle tests, Road Load Data applications, ISO/TS16949 and other industry standards
  • Electronic assembly and computer equipment testing
  • Avionics and military hardware testing, such as Mechanical Environmental Tests AECTP 400, ISO 9000, MIL-STD, AS9000, and RTCA DO-160 Section 8 tests
  • Telecommunication and satellite component testing
  • General stress screening, including ISO 5344, Accelerated Durability Testing (ADT), HALT and HASS
  • Product and package testing, such as ISTA and ASTM 4169 tests
  • Shock test applications, including Shock Response Spectrum (SRS)
  • Environmental testing with chambers, Combined Environmental Reliability Test (CERT) and others
V830 – 9.81 KN (1000 KGF) MEDIUM-FORCE SHAKER
  • Sine force: 9.81 kN, pk
  • Random force: 9.81 kN, RMS
  • Armature Dia: 185 mm & 335 mm
  • Acceleration, sine: Up to 75 g
  • Velocity, sine: 2 m/s
  • Displacement: 50.8 mm, pk-pk
  • Frequency range: DC to 3000 Hz
  • Static Payload Capacity: 160 kg
  • Optional Combo Slip Table available
V850 – 22.2 KN (2000 KGF) MEDIUM-FORCE SHAKER
  • Sine force: 22.2 kN, pk
  • Random force: 22.2 kN, RMS
  • Armature Dia: 240 mm & 440 mm
  • Acceleration, sine: Up to 60 g
  • Velocity, sine: 2 m/s
  • Displacement: 50.8 mm, pk-pk
  • Frequency range: DC to 3000 Hz
  • Static Payload Capacity: 350 kg
  • Optional Combo Slip Table available

For more details on V830 & V850 Shakers, visit: D:\Datasheet\B&K\2018\V850-440 Vibration Test System.pdf

V875 – 35.59 kN (3500 KGF) MEDIUM-FORCE SHAKER
  • Sine force: 35.59 kN, pk
  • Random force: 35.59 kN, RMS
  • Armature Dia: 240 mm, 440 mm & 640 mm
  • Acceleration, sine: Up to 110 g
  • Velocity, sine: 1.8 m/s
  • Displacement: 50.8 mm, pk-pk
  • Frequency range: DC to 3000 Hz
  • Static Payload Capacity: 600 kg
  • Optional Combo Slip Table available

For more details on V875 Shaker, see: D:\Datasheet\B&K\2018\V875 Vibration Shaker.pdf

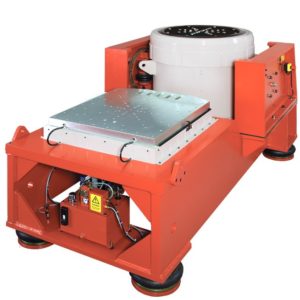

V875LS – 35.59 kN (3500 KGF) MEDIUM-FORCE SHAKER
  • Sine force: 35.59 kN, pk
  • Random force: 35.59 kN, RMS
  • Armature Dia: 240 mm, 440 mm & 640 mm
  • Acceleration, sine: Up to 112 g
  • Velocity, sine: 1.8 m/s
  • Displacement: 76.2 mm, pk-pk
  • Frequency range: DC to 3000 Hz
  • Static Payload Capacity: 600 kg
  • Optional Combo Slip Table available

For more details on V875LS Shaker, see: D:\Datasheet\B&K\2018\V875LS Vibration Shaker.pdf

V8 – 57.8 kN (5800 KGF) MEDIUM-FORCE SHAKER
  • Sine force: 57.83 kN, pk
  • Random force: 66 kN, RMS
  • Armature Dia: 440 mm & 640 mm
  • Acceleration, sine: Up to 140 g
  • Velocity, sine: 1.8 m/s
  • Displacement: 63.5 mm, pk-pk
  • Frequency range: DC to 2500 Hz
  • Static Payload Capacity: 700 kg
  • Optional Combo Slip Table available

For more details on V8 Shaker, see: D:\Datasheet\B&K\2018\V8 Vibration Shaker.pdf
