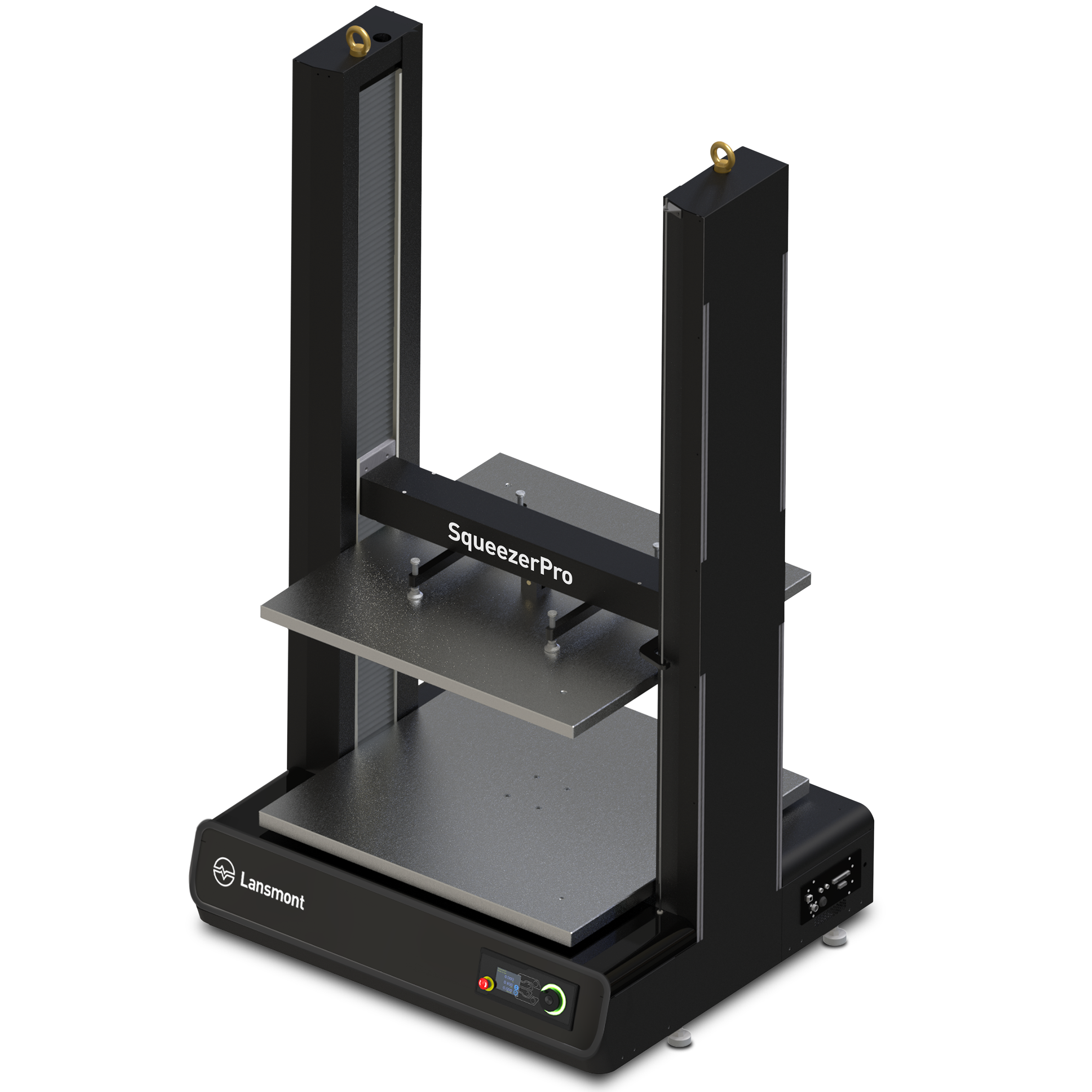

Squeezer Compression Test System

The Squeezer is designed to evaluate box performance, the Squeezer is a valuable tool for researching the effects of various board mediums, closures, interior partitions, and other box design variables on compressive strength performance. Most commonly the Squeezer is installed on top of a laboratory bench or with one of the optional machine test stands. Lansmont Compression Testers comply with industry standard package testing specifications including ASTM, ISTA, ISO, and MIL-STD.

Max. Package Dimensions

Verified Force Range

Positioning Speeds

Testing Modes

Length: 30 in (76 cm)

Width: 30 in (76 cm)

Height: 48 in (122 cm)

500 – 5000 lbs

(2.22 – 22.2 kN)

27.6 in/min (70 cm/min)

[platen positioning speed]

0.1 to 0.51 in/min (1.27 cm/min)

[test speed range]

Constant Rate

Constant Load
