Standard Shock Systems
Lansmont Standard Shock Systems are capable of performing half sine, trapezoidal and sawtooth shock pulse waveforms. Table sizes range from as small as 6 in. (15. 2 cm) up to 60 in. (152 cm). The Standard Series models are the original shock system designs that Lansmont has been supplying for decades to labs across the globe.
MODEL | TABLE | MAX. ACCELERATION | MAX. PAYLOAD |
15D | 6 in x 6 in (15.2 cm x 15.2 cm) | 2000 g | 40 lbs (18 kg) |
23 | 9.06 in x 9.06 in (23 cm x 23 cm) | 5000 g | 80 lbs (36 kg) |
23D | 9.06 in x 6 in (23 cm x 15 cm) [top surface] 9.06 in x 9.06 in (23 cm x 23 cm) [front surface] | 2000 g | 40 lbs (18 kg) |

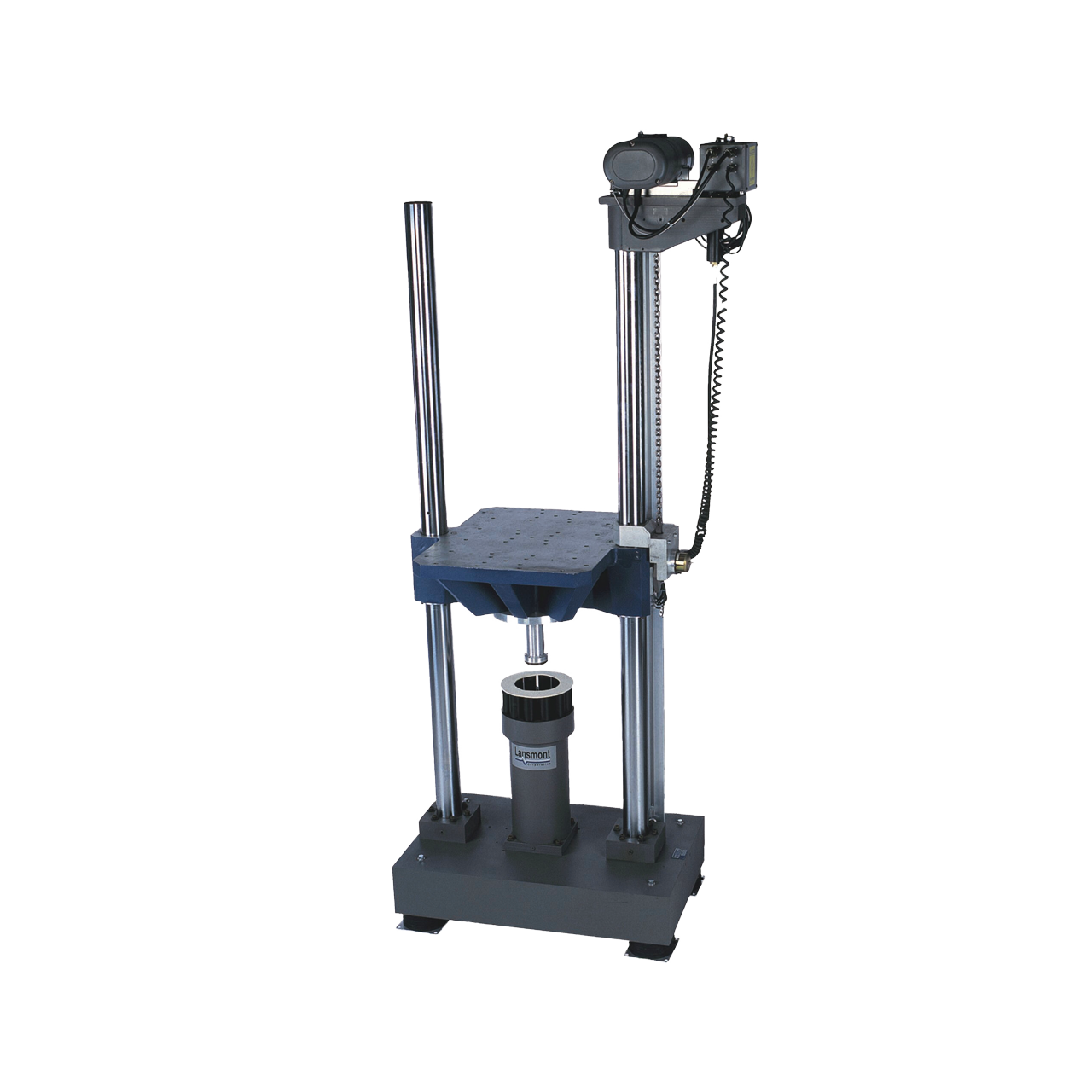

65/81 | 25.6 in x 32 in (65 cm x 81 cm) | 600 g | 500 lbs (227 kg) |
65/81D | 25.6 in x 32 in (65 cm x 81 cm) | 600 g | 500 lbs (227 kg) |

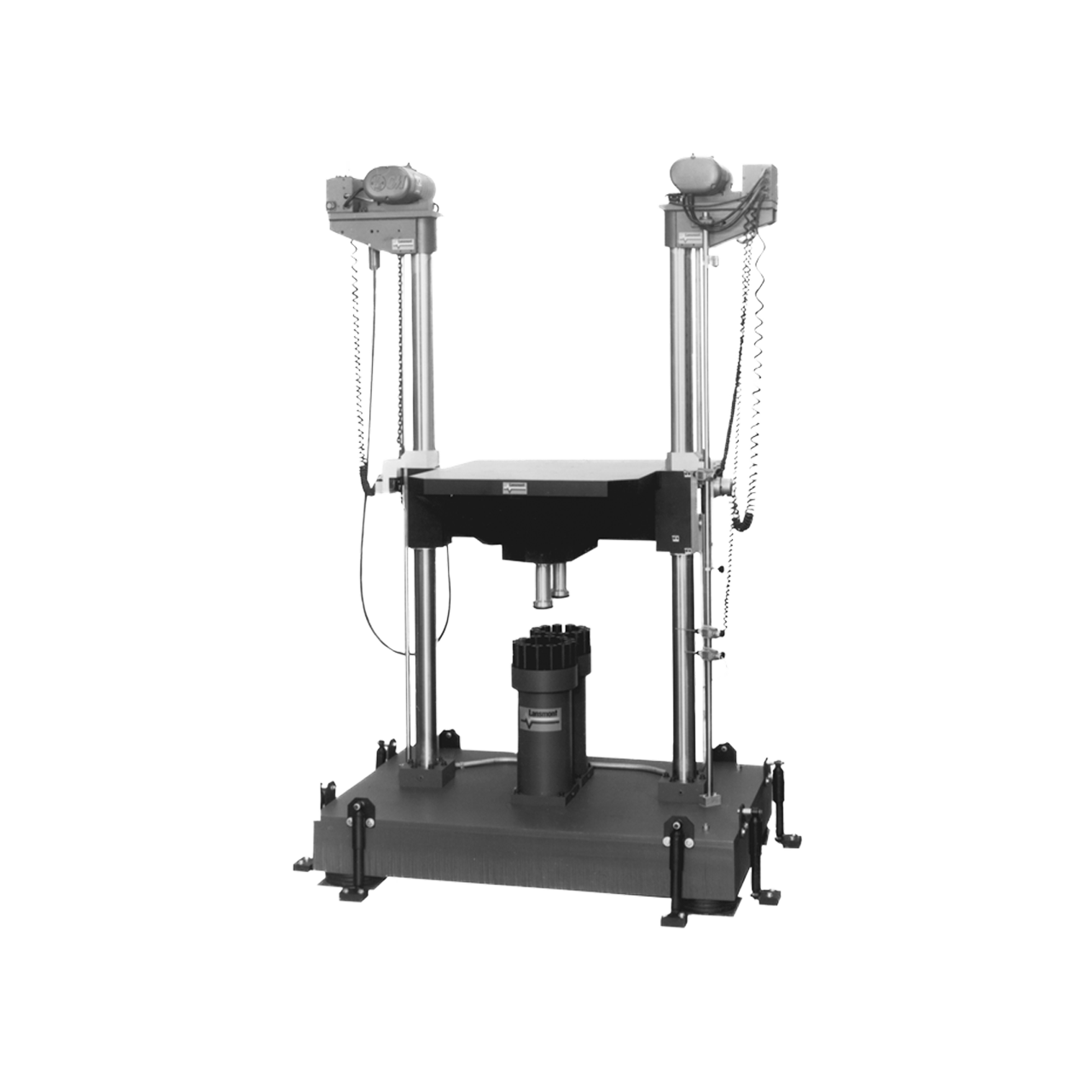

95/115 | 37.2 in x 45.4 in (95 cm x 115 cm) | 600 g | 1000 lbs (454 kg) [standard] 2500 lbs (1134 kg) [heavy duty] |

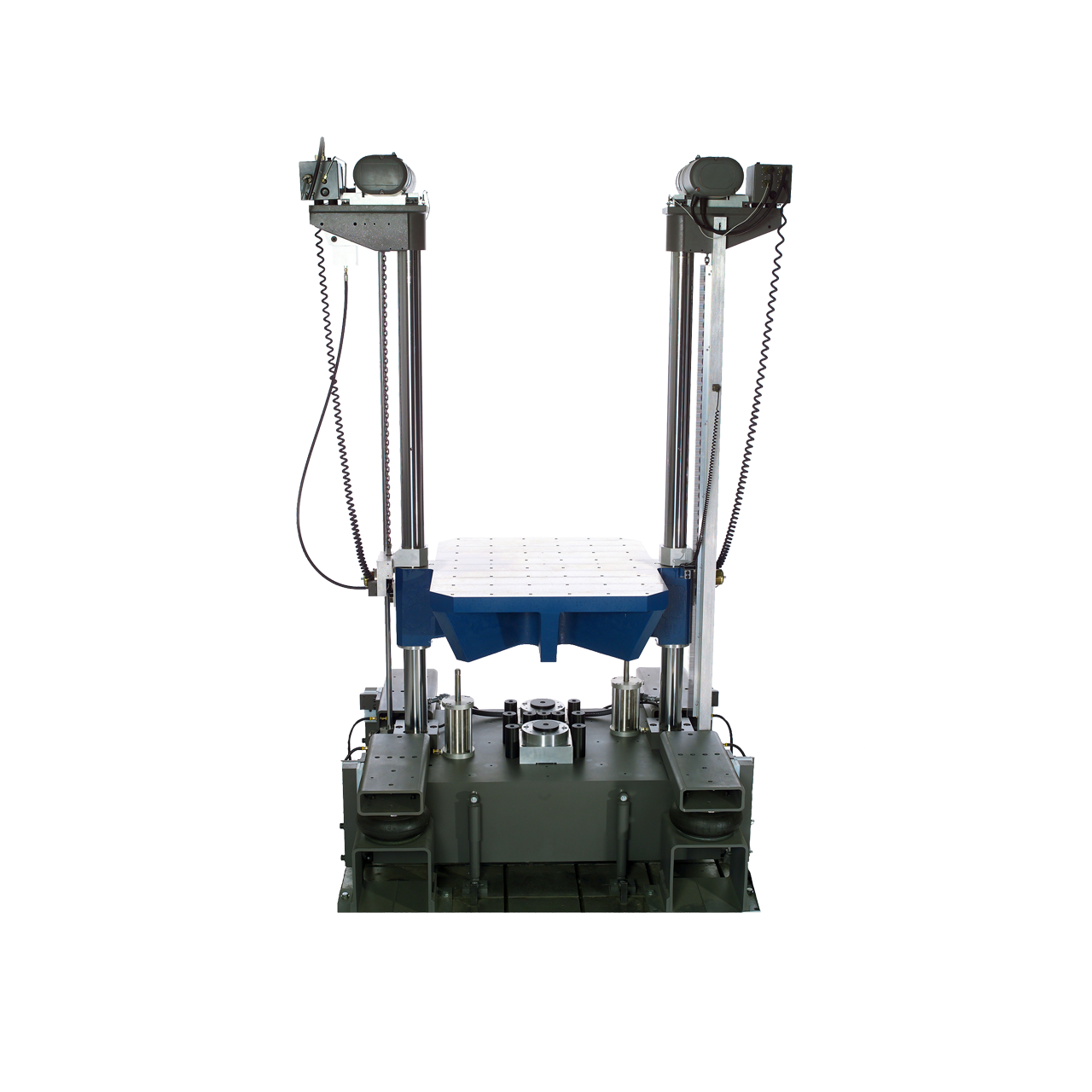

95/115D | 37.2 in x 45.4 in (95 cm x 115 cm) | 600 g | 1000 lbs (454 kg) |
122 | 48 in x 48 in (122 cm x 122 cm) | 600 g | 750 lbs (340 kg) [standard] 2500 lbs (1134 kg) [heavy duty] |
152 | 60 in x 60 in (152 cm x 152 cm) | 400 g | 2000 lbs (907 kg) |
