Two-Wheeler Dynamometer
- Dynostar D50 Series: Modular and cost-effective solution for scooters and light motorcycles
- Dynostar D70 Series: High-performance dynamometers for advanced and high-power two-wheelers
- Dynostar D4T: Multi-vehicle testing platform for motorcycles, ATVs, and carts
- Dynostar 2C MK2: Compact and portable dynamometer for on-site diagnostics and tuning
- Dynostar SSD-1: Mobile roadside testing system for e-bikes, pedelecs, and mopeds

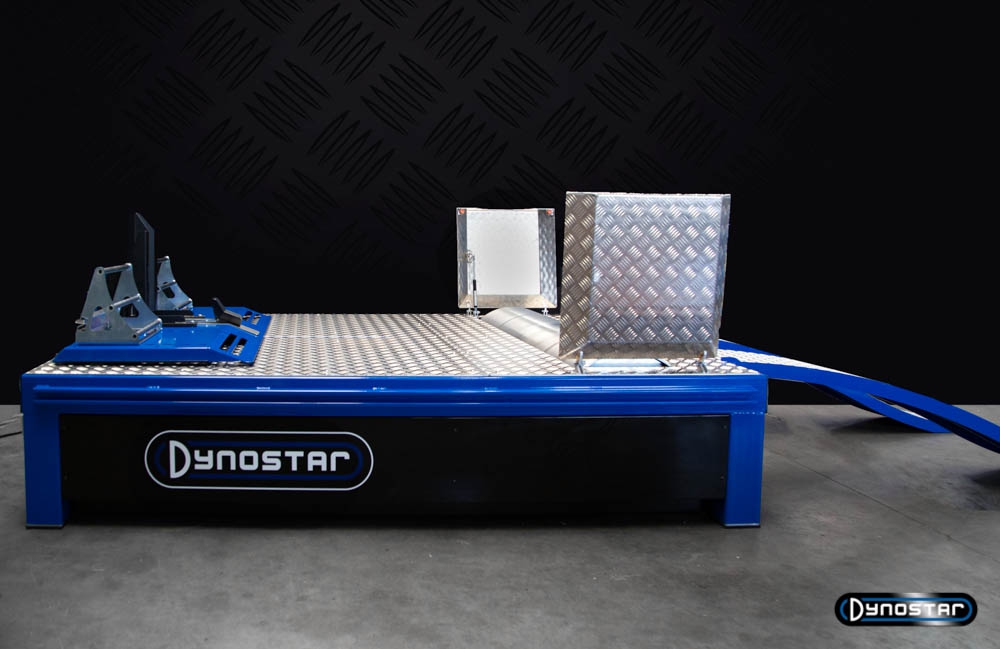

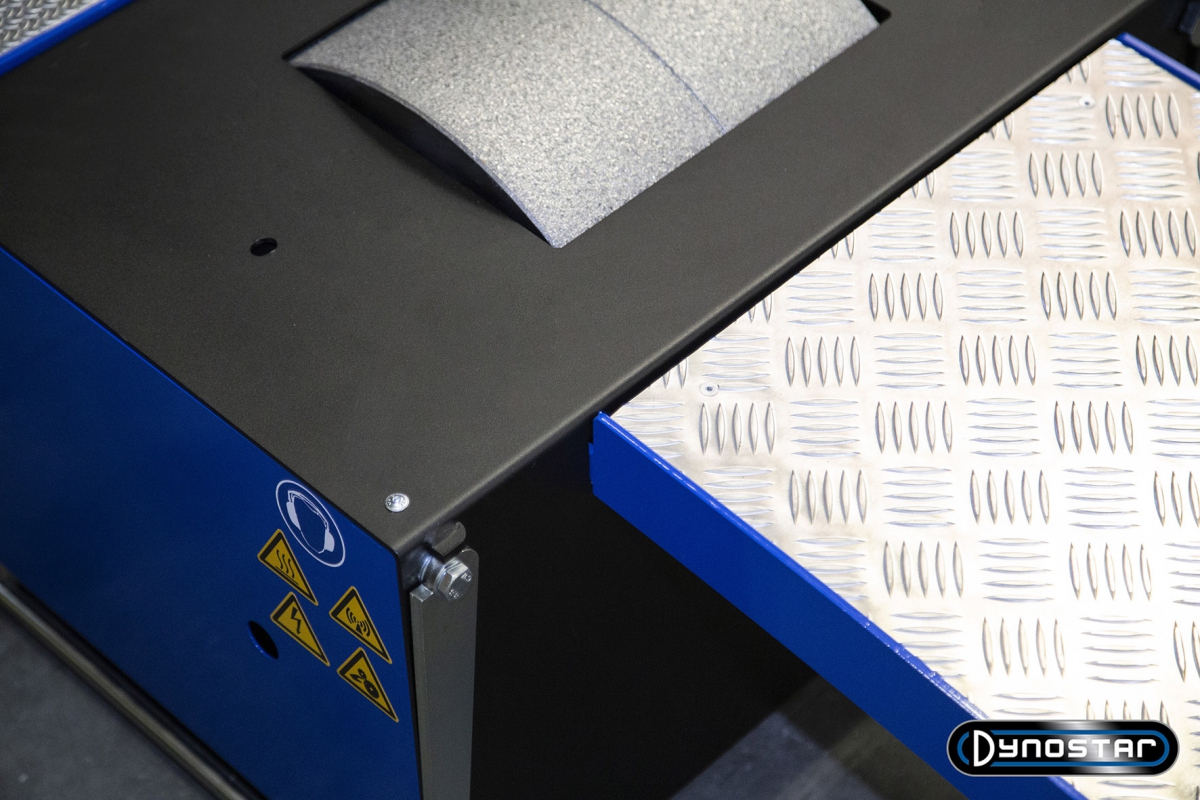

Dynostar D50 Series – Modular Motorcycle Dynamometers
The Dynostar D50 Series is a fully modular dynamometer solution designed for testing, tuning, and diagnostics of light motorcycles and scooters. Built on a flexible
architecture, the D50 platform allows users to upgrade and adapt the system based on evolving testing requirements—delivering a perfect balance of “cost-efficiency and high performance.” With two core variants—D50i and D50ECB—the system supports both inertia-based and brake-controlled testing, making it suitable for a wide range of automotive testing applications.
D50i– Inertia-Based Dynamometer
The Dynostar D50i operates on the inertia principle, making it an ideal entry-level solution for scooter and small motorcycle testing. It features a high-inertia drum that can be further enhanced with additional discs, enabling flexible testing across different vehicle types.
Use Cases
- Scooter and light motorcycle performance testing
- Basic tuning and diagnostics
- Workshops and entry-level test labs
Key Features
- Inertia-based testing system
- Upgradeable drum inertia for wider vehicle coverage
- Supports vehicles up to 150 HP
- Cost-effective solution for performance testing
- Simple and reliable operation
D50ECB– Eddy Current Brake Dynamometer
The Dynostar D50ECB comes equipped with an integrated eddy current brake, enabling both dynamic and static power testing. This allows for more controlled and advanced testing scenarios, making it suitable for professional applications.
Use Cases
- Advanced vehicle diagnostics and calibration
- Controlled load simulation and endurance testing
- R&D and high-performance tuning environments
Key Features
- Integrated eddy current brake for controlled testing
- Supports vehicles up to 200 HP
- Static and dynamic power measurement
- Automatic braking and load simulation
- Suitable for high-precision testing applications

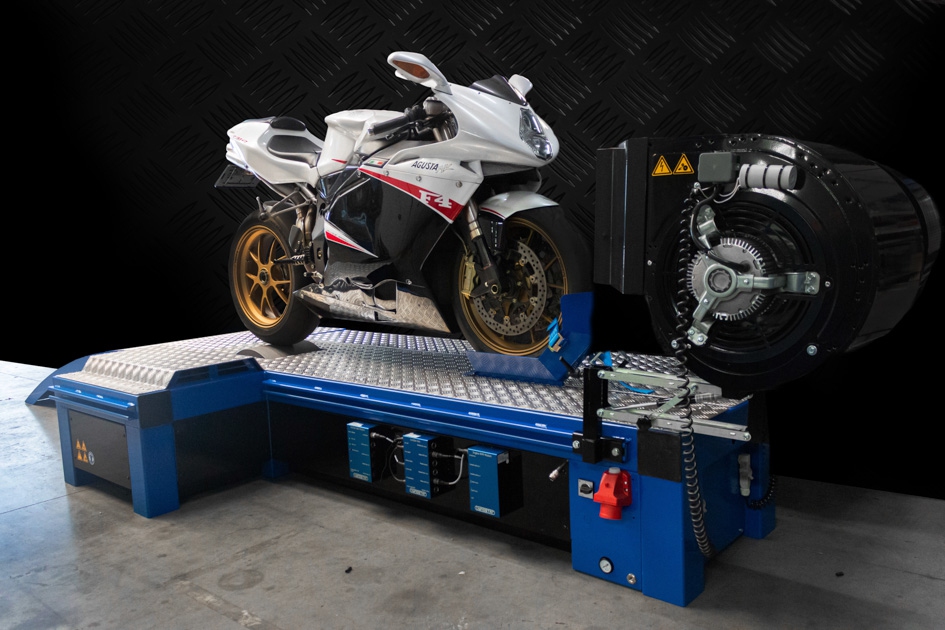

Dynostar D70 Series – Ultimate Motorcycle Dynamometer Solution
The Dynostar D70 Series represents the next level in motorcycle testing, delivering unmatched precision, stability, and repeatability for high-performance applications. Designed for advanced tuning, diagnostics, and validation, the D70 platform supports both conventional and electric two-wheeler testing.
Available in above-ground and pit-mounted configurations, the D70 series is built on a rigid, precision-balanced steel frame, ensuring vibration-free operation and highly accurate measurements even at extreme speeds
D70 – Fixed Inertia Dynamometer
The Dynostar D70 is engineered for consistent and repeatable testing with a fixed inertia system, making it ideal for standardized testing environments.
Use Cases
- High-performance motorcycle tuning
- Certification and validation testing
- Performance benchmarking
Key Features
- Fixed inertia for consistent results
- High dynamic power capacity up to 465 kW
- Eddy current brake with 355 kW absorption
- High-speed testing up to 325 km/h
- Precision-balanced drum for vibration-free operation
D70Ti – Adjustable Inertia Dynamometer
The Dynostar D70Ti introduces a 3-piece adjustable drum system, allowing operators to modify inertia based on vehicle type—offering unmatched flexibility across a wide range of motorcycles.
Use Cases
- Multi-vehicle testing (small bikes to superbikes)
- R&D and advanced performance tuning
- Flexible test lab environments
Key Features
- Adjustable inertia: 7.28 / 11.15 / 15.09 kg/m²
- Suitable for diverse vehicle categories
- Same high-performance capabilities as D70
- Enhanced adaptability without compromising accuracy
D70-E – Electric Drive Testing
The Dynostar D70-E extends the D70 platform into EV and hybrid testing, enabling precise validation of electric drivetrains.
Capabilities
- WLTP & NEDC drive cycle simulation
- Regenerative braking analysis
- Coast-down simulation
- Advanced ADS software integration
M70 – Mobile Dynamometer
The Dynostar M70 is a fully mobile testing solution designed for on-road diagnostics and real-time validation.
Key Highlights
- Towable and road-deployable system
- Same performance capability as D70
- Ideal for field testing and live tuning
Performance & Key Features
- Max Dynamic Power: 465 kW
- Max Speed: 325 km/h
- Eddy Current Brake: Up to 355 kW (1200 Nm)
- High-inertia drum for realistic load simulation
- Grooved rollers with optional tungsten carbide coating for superior grip
- Rigid tubular steel frame with G6.3 precision balancing
Dynostar D4T – Multi-Vehicle Dynamometer
The Dynostar D4T is a unique, multifunctional chassis dynamometer designed to test carts, ATVs, and motorcycles on a single platform. Built for maximum flexibility and performance, the D4T enables testing facilities to handle diverse vehicle categories without the need for multiple systems.
With its robust design and integrated high-power capabilities, the D4T delivers high accuracy, stability, and efficiency across a wide range of testing applications.
Designed for Versatility
Engineered to accommodate multiple vehicle types, the D4T ensures secure and reliable testing for even the most challenging configurations.
Use Cases
- Multi-vehicle testing (carts, ATVs, motorcycles)
- R&D and validation labs
- Performance tuning centers
- Durability and diagnostics testing
Key Features
- Electrically adjustable wheel clamps for easy setup
- Supports wide quad/ATV tires without compromise
- Single platform for multiple vehicle categories
- Space-saving design with integrated systems
Performance & Capability
The D4T combines high inertia and powerful braking to deliver precise and realistic test conditions.
- Max Dynamic Power: 440 kW
- Max Speed: 325 km/h
- Eddy Current Brake: Up to 355 kW absorption
- High-inertia roller for accurate load simulation
- Suitable for both dynamic and controlled testing
Integrated Design Advantage
Unlike conventional systems, the D4T features an eddy current retarder integrated within the roller, optimizing space while maintaining high efficiency and performance.
- Compact and efficient system layout
- Reduced footprint without compromising capability
- Enhanced system reliability
Advanced Cooling Technology
To ensure consistent performance during high-power testing, the D4T incorporates an efficient forced cooling system:
- Centrifugal fan-driven airflow
- Cooling through the roller core
- Stable operation under continuous load conditions
Key Specifications
- Weight: 650 kg
- Dimensions (L × W × H): 2.40 × 1.63 × 0.92 m
- Power Supply: 230 V / 110 V
- Air Requirement: 3.5 bar
- Drum Diameter: 0.52 m
- Drum Width: 1.35 m
- Total Mass Inertia: 17.21 kg/m²
- Equivalent Vehicle Mass: 257 kg
- Max Dynamic Power: 440 kW
- Max Static Power (Cold): 355 kW
- Max Continuous Power: 139 kW
Dynostar 2C MK2 – Portable Two-Wheeler Dynamometer
The Dynostar 2C MK2 redefines flexibility in two-wheeler testing with its compact, suitcase-style design. Engineered for on-site tuning, diagnostics, and performance validation, this portable dynamometer enables testing anytime, anywhere with minimal setup.
Designed for workshops, field engineers, and mobile testing applications, the 2C MK2 delivers reliable performance without compromising portability.
Built for Mobility
Use Cases
- On-site scooter testing and diagnostics
- Mobile tuning and service applications
- Workshop performance checks
- Quick validation and troubleshooting
Key Features
- Fully integrated suitcase system with all accessories
- Optional laptop integration for complete mobile setup
- Dedicated ramp with wheel stop for easy positioning
- Requires only a standard 230V power supply
- Lightweight and easy to transport
Performance & Capability
Despite its compact size, the 2C MK2 offers powerful testing capabilities for light two-wheelers.
- Max Power (Cold): 62.8 kW
- Continuous Power: 14.6 kW
- Max Speed: 200 km/h
- Dual drum configuration for enhanced stability
Equipped with a uniquely developed eddy current brake, the system enables:
- Realistic road load simulation
- Driving resistance emulation
- Accurate tuning and diagnostic testing
Compact Specifications
- Weight: 48.7 kg
- Dimensions (L × W × H): 0.55 × 0.38 × 0.23 m
- Power Supply: 230 V
- Max Current: 12 A
- Drum Diameter: 0.14 m
- Number of Drums: 2
- Equivalent Vehicle Mass: 89.8 kg
Dynostar SSD-1 Portable Roadside Testing for E-Mobility Enforcement
The Dynostar SSD-1 is a specialized, lightweight dynamometer system designed for accurate roadside testing of e-bikes, speed pedelecs, and mopeds. Engineered for government authorities and regulatory bodies, the SSD-1 combines portability, precision, and compliance, making it an ideal solution for on-site vehicle inspection and enforcement.
Engineered for Field Deployment
Built with mobility and ease of use in mind, the SSD-1 enables quick setup and reliable testing in real-world conditions:
- Fully portable and lightweight dual-unit design
- Integrated high-resolution color display for real-time monitoring
- Built-in compressor with automatic tyre pressure correction
- Synchronized front & rear wheel drive for accurate road simulation
- Permanent magnet brake for efficient road load simulation
Advanced Electronics & Smart Diagnostics
The SSD-1 is equipped with intelligent electronics and software to ensure accurate and repeatable measurements:
- Integrated fault diagnosis system
- Self-check functionality for system validation
- Real-time data acquisition and analysis
- Reliable and repeatable testing performance
Certified & Field-Proven Solution
The system is fully validated and widely adopted by leading authorities:
- Approved by NMi (Dutch Notified Body)
- Actively used by:
- Dutch Police
- RDW (Vehicle Authority)
- Military organizations
This ensures compliance with regulatory standards and trusted performance in enforcement environments.
Key Use Cases
- Roadside compliance testing of e-bikes and pedelecs
- Speed verification and regulation enforcement
- Performance validation of light electric vehicles
- Field diagnostics and inspection
Technical Specifications
- Power Supply: 24V Li-ion Battery (20Ah)
- Speed Range: 15 – 100 km/h
- Vehicle Weight Capacity: Up to 125 kg
- Rider Weight Range: 75 – 125 kg
- Wheelbase Compatibility: 1200 – 1800 mm
- Drum Diameter: 124 mm
- Operating Temperature: -10°C to 50°C
- Weight: ~35–37 kg (front & rear units)
- Dimensions (L × W × H): 2000 × 750 × 250 mm
The Dynostar D50 gives you the ability to tune or perform diagnostics on light motorcycles and scooters. Our slogan for the Dynostar D50 is: “Low budget, High performance.”
The D50-series is the first dynamometer to be entirely modular. According to your specific wishes and desires, you can add several modules to the standard configuration.
The Dynostar D50- serie is divided in two main versions: D50i and D50ECB.
The D50i is a scooter and small motorcycle dynamometer which applies the inertia principle. The standard drum, which has already got a relatively high inertia, can easily be upgraded with a supplementary disc. Thanks to this feature, you will be able to perform tests on various vehicles, and will not be limited to a small part of the entire motorcycle market. Motorcycles and scooters up to 150Hp can easily be tested on the Dynostar model D50.
The D50ECB already has the eddy current brake in its standard equipment. Nevertheless, this eddy current brake can always be added afterwards, thanks to the modular principle the D50ECB can test vehicles up to 200Hp.
Both the models D50i and D50ECB, are provided with a ramp and front wheel adjustment.
